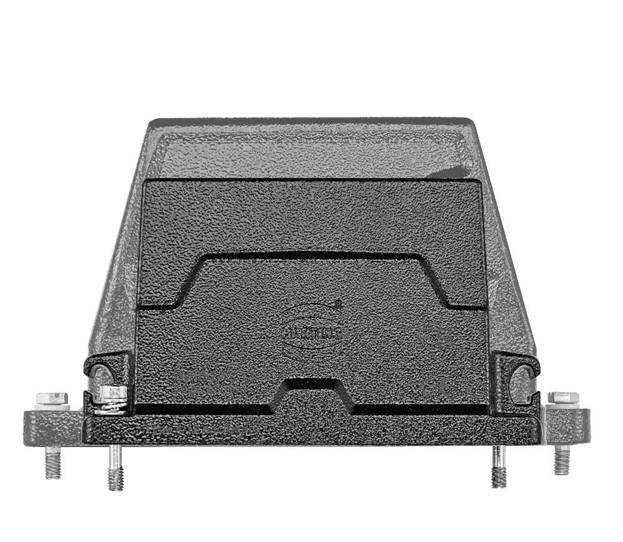

Han® HPR Compact: Space-saving and powerful connector solutions for e-mobility

Han® HPR is a globally recognised standard for connector housings which require special protection against environmental influences in power generation plants, rail vehicles or ships. To expand the connector range to cover harsh environments with limited installation space, HARTING is adding Han® HPR Compact hoods and housings to the series.

The Han® HPR series is already a proven solution for the railway, ideal for transmitting high power, high voltage, signal or Ethernet data in exposed areas. They are suitable for bogie mounting, roof mounting and as jumper cables between carriages.

The new high-density panel footprint of the Han® HPR Compact can also provide a highly reliable alternative to plastic housing style High Voltage (HV) connectors for use on electric/hydrogen bus and truck powertrain interconnection cabling systems.

Han® HPR Compact is a reliable solution for electric/hydrogen bus and truck powertrains.

Electric drives, battery units and hydrogen fuel cells can often come into contact with potentially damaging harsh environmental conditions. Underneath a vehicle, stone damage, water and winter salt spray can occur whilst high humidity water creepage can occur along cables behind protective access panels. On the roof, high UV levels can be a particular issue. The Han® HPR Compact has been specially designed to minimise repairs and maintenance in these areas.

The Han® HPR Compact requires 20% less installation space and is 25% lighter than conventional solutions. The product is available in sizes 6, 10, 16 and 24B and has a special feature that enables the housings ‘to grow with demand’, even after installation.

With the Han® HPR Compact, users save 20% installation space compared to previous solutions.

Up to two frame extenders can be attached to the bulkhead mounted housing, each frame expanding the height of the enclosure by three centimetres, increasing the space available for connections and reducing cable stress.

Thanks to savings in installation space and weight, Han® HPR Compact housings also contribute towards sustainability by reducing energy consumption.

Han® HPR Compact offers the following benefits:

  • Smaller mounting dimensions
  • High flexibility due to the use of extenders, each adding 3cm of height
  • Time savings: shorter installations in environments with limited space
  • 16 coding options allow safe mating process even in environments with limited space
  • The entire Han® B compatible connector portfolio can be used, from standard inserts to Han® HC Modular, except for the insulation body of Han® HC 650 Modular

To learn more the new Han® HPR Compact, please www.harting.com/UK/en-gb/compact-connector-grows-with-tasks or email salesUK@harting.com
